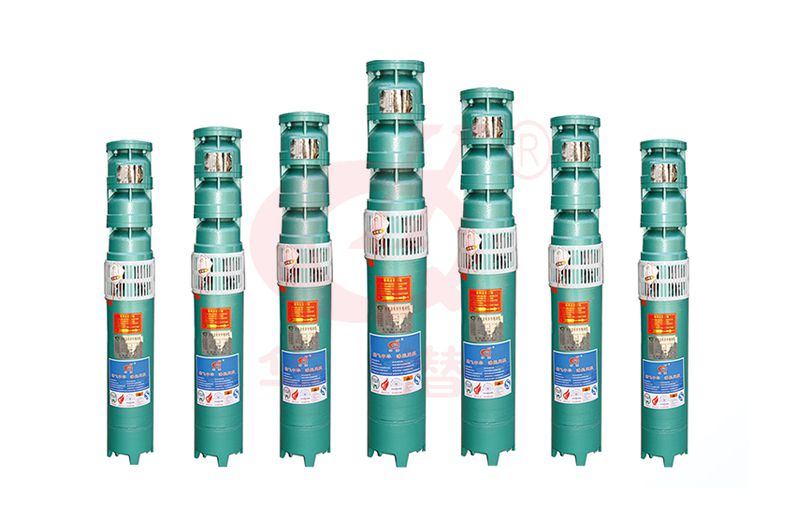

Submersible pump 175 series

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Inquire Now Next Product

Product Description

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Type:

1. The pump is vertical, with a diversion shell or impeller, routine or mixed flow impeller type.

2. The pump and the submersible motor are directly connected or coaxial.

3. From the drive end, the shaft is generally rotated clockwise.

Model: submersible pump for well

Instance:

Submersible pump 150 series

Model: submersible motor:

Instance:

Submersible pump 150 series

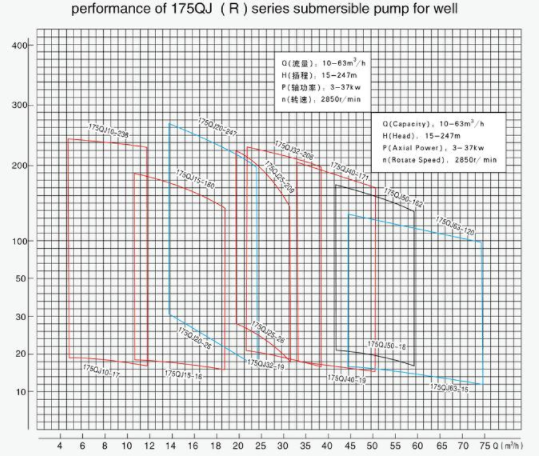

Basic Parameters:

No.	Specifications and models	Outlet diameter mm	Rated flow m³/h	Rated lift m	Speed r/min	Rated voltage V	Rated power kW	Rated current A	Maximum radial dimension of electric pump underground mm
1	175QJ5-36	40	5	36	2850	380	2.2	6.11	168
2	175QJ5-54			54			2.2	6.11
3	175QJ5-72			72			3	7.69
4	175QJ5-90			90			3	7.69
5	175QJ5-108			108			4	10.06
6	175QJ5-126			126			5.5	13.48
7	175QJ5-144			144			5.5	13.48
8	175QJ10-36	50	10	36	2850	380	2.2	6.11	168
9	175QJ10-54			54			3	7.69
10	175QJ10-72			72			4	10.06
11	175QJ10-90			90			5.5	13.48
12	175QJ10-108			108			7.5	18.26
13	175QJ10-126			126			7.5	18.26
14	175QJ10-144			144			9.2	21.84
15	175QJ10-162			162			11	25.79
16	175QJ10-180			180			11	25.79
17	175QJ10-198			198			13	29.92
18	175QJ10-216			216			13	29.92
19	175QJ10-234			234			15	34.31
20	175QJ10-252			252			18.5	42.32
21	175QJ10-270			270			18.5	42.32
22	175QJ10-288			288			18.5	42.32
23	175QJ10-306			306			18.5	42.32
24	175QJ10-324			324			22	49.41
25	175QJ10-342			342			22	49.41
26	175QJ10-360			360			22	49.41
27	175QJ10-378			378			25	56.15
28	175QJ10-396			396			25	56.15
29	175QJ10-414			414			25	56.15
30	175QJ10-432			432			30	66.97
31	175QJ10-450			450			30	66.97
32	175QJ10-486			486			30	66.97
33	175QJ10-504			504			37	81.62
34	175QJ10-522			522			37	81.62
35	175QJ10-558			558			37	81.62
36	175QJ10-594			594			37	81.62
37	175QJ10-630			630			45	98.66
38	175QJ10-648			648			45	98.66
39	175QJ10-666			666			45	98.66
40	175QJ10-702			702			45	98.66
41	175QJ10-720			720			45	98.66
42	175QJ10-756			756			55	120.59
43	175QJ10-774			774			55	120.59
44	175QJ10-810			810			55	120.59
45	175QJ15-26	50	15	26	2850	380	2.2	6.11	168
46	175QJ15-39			39			3	7.69
47	175QJ15-52			52			4	10.06
48	175QJ15-65			65			5.5	13.48
49	175QJ15-78			78			7.5	18.26
50	175QJ15-91			91			7.5	18.26
51	175QJ15-104			104			9.2	21.84
52	175QJ15-120			120			11	25.79
53	175QJ15-135			135			13	29.92
54	175QJ15-150			150			13	29.92
55	175QJ15-165			165			15	34.31
56	175QJ15-180			180			15	34.31
57	175QJ15-195			195			18.5	42.32
58	175QJ15-210			210			18.5	42.32
59	175QJ15-240			240			22	49.41
60	175QJ15-270			270			25	56.15
61	175QJ15-300			300			25	56.15
62	175QJ15-330			330			30	66.97
63	175QJ15-360			360			30	66.97
64	175QJ15-390			390			37	81.62
65	175QJ15-420			420			37	81.62
66	175QJ15-450			450			45	98.66
67	175QJ15-480			480			45	98.66
68	175QJ15-510			510			45	98.66
69	175QJ15-540			540			45	98.66
70	175QJ15-570			570			55	120.59
71	175QJ15-600			600			55	120.59
72	175QJ15-630			630			55	120.59
73	175QJ15-645			645			55	120.59
74	175QJ20-26	50	20	26	2850	380	3	7.69	168
75	175QJ20-39			39			4	10.06
76	175QJ20-52			52			5.5	13.48
77	175QJ20-65			65			7.5	18.26
78	175QJ20-78			78			7.5	18.26
79	175QJ20-91			91			9.2	21.84
80	175QJ20-104			104			11	25.79
81	175QJ20-130			130			13	29.92
82	175QJ20-156			156			15	34.31
83	175QJ20-182			182			18.5	42.32
84	175QJ20-208			208			22	49.41
85	175QJ20-247			247			25	56.15
86	175QJ20-270			270			30	66.97
87	175QJ20-306			306			37	81.62
88	175QJ20-342			342			37	81.62
89	175QJ20-360			360			37	81.62
90	175QJ20-396			396			45	98.66
91	175QJ20-432			432			45	98.66
92	175QJ20-450			450			45	98.66
93	175QJ20-486			486			55	120.59
94	175QJ20-504			504			55	120.59
95	175QJ20-540			540			55	120.59
96	175QJ25-26	50	25	26	2850	380	3	7.69	168
97	175QJ25-39			39			5.5	13.48
98	175QJ25-65			65			7.5	18.26
99	175QJ25-78			78			9.2	21.84
100	175QJ25-91			91			11	25.79
101	175QJ25-104			104			13	29.92
102	175QJ25-130			130			15	34.31
103	175QJ25-156			156			18.5	42.32
104	175QJ25-182			182			22	49.41
105	175QJ25-208			208			25	56.15
106	175QJ32-24	65	32	24	2850	380	4	10.06	168
107	175QJ32-36			36			5.5	13.48
108	175QJ32-48			48			7.5	18.26
109	175QJ32-60			60			9.2	21.84
110	175QJ32-72			72			11	25.79
111	175QJ32-84			84			13	29.92
112	175QJ32-96			96			15	34.31
113	175QJ32-120			120			18.5	42.32
114	175QJ32-144			144			22	49.41
115	175QJ32-168			168			25	56.15
116	175QJ32-182			182			30	66.97
117	175QJ32-195			195			30	66.97
118	175QJ32-208			208			37	81.62
119	175QJ32-221			221			37	81.62
120	175QJ32-234			234			37	81.62
121	175QJ32-247			247			45	98.66
122	175QJ32-260			260			45	98.66
123	175QJ32-273			273			45	98.66
124	175QJ32-286			286			45	98.66
125	175QJ32-299			299			55	120.59
126	175QJ32-312			312			55	120.59
127	175QJ40-36	80	40	36	2850	380	7.5	18.26	168
128	175QJ40-48			48			9.2	21.84
129	175QJ40-60			60			11	25.79
130	175QJ40-72			72			13	29.92
131	175QJ40-96			96			18.5	42.32
132	175QJ40-120			120			22	49.41
133	175QJ40-132			132			25	56.15
134	175QJ50-24	80	50	24	2850	380	5.5	13.48	168
135	175QJ50-36			36			7.5	18.26
136	175QJ50-48			48			11	25.79
137	175QJ50-60			60			13	29.92
138	175QJ50-84			84			18.5	42.32
139	175QJ50-96			96			22	49.41
140	175QJ50-108			108			25	56.15
141	175QJ50-120			120			30	66.97
142	175QJ63-22	80	63	22	2850	380	7.5	18.26	168
143	175QJ63-33			33			9.2	21.84
144	175QJ63-44			44			13	29.92
145	175QJ63-55			55			15	34.31
146	175QJ63-66			66			18.5	42.32
147	175QJ63-77			77			22	49.41
148	175QJ63-88			88			25	56.15
149	175QJ63-99			99			30	66.97
150	175QJ80-9	100	80	9	2850	380	4	10.06	168
151	175QJ80-18			18			7.5	18.26
152	175QJ80-27			27			11	25.79
153	175QJ80-36			36			15	34.31
154	175QJ80-45			45			18.5	42.32
155	175QJ80-54			54			22	49.41
156	175QJ80-63			63			25	56.15
157	175QJ80-72			72			25	56.15
158	175QJ80-81			81			30	66.97

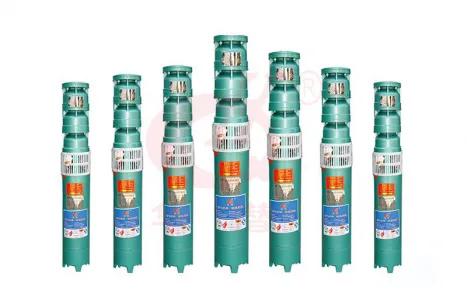

Submersible pump 175 series
