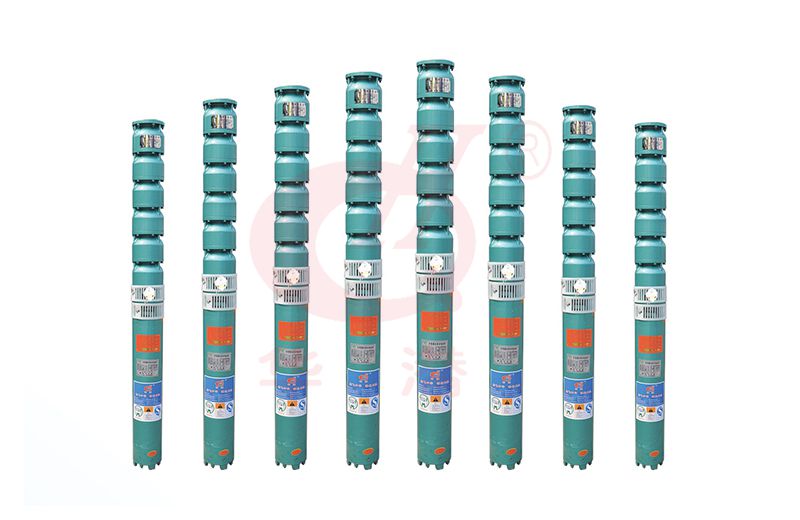

Submersible pump 150 series

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Inquire Now

Product Description

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Type:

1. The pump is vertical, with a diversion shell or impeller, routine or mixed flow impeller type.

2. The pump and the submersible motor are directly connected or coaxial.

3. From the drive end, the shaft is generally rotated clockwise.

Model: submersible pump for well

Instance:

Submersible pump 150 series

Model: submersible motor:

Instance:

Submersible pump 150 series

Basic Parameters:

No.	Specifications and models	Outlet diameter mm	Rated flow m³/h	Rated lift m	Speed r/min	Rated voltage V	Rated power kW	Rated current A	Maximum radial dimension of electric pump underground mm
1	150QJ5-50	40	5	50	2850	380	1.5	4.60	143
2	150QJ5-66			66			2.2	6.55
3	150QJ5-77			77			2.2	6.55
4	150QJ5-88			88			3	7.84
5	150QJ5-99			99			3	7.84
6	150QJ5-110			110			3	7.59
7	150QJ5-121			121			4	10.12
8	150QJ5-132			132			4	10.12
9	150QJ5-143			143			4	10.12
10	150QJ5-154			154			5.5	13.65
11	150QJ5-165			165			5.5	13.65
12	150QJ5-176			176			5.5	13.65
13	150QJ5-187			187			5.5	13.65
14	150QJ5-198			198			5.5	13.65
15	150QJ5-209			209			7.5	18.50
16	150QJ5-220			220			7.5	18.50
17	150QJ5-231			231			7.5	18.50
18	150QJ5-242			242			7.5	18.50
19	150QJ5-253			253			7.5	18.50
20	150QJ5-264			264			7.5	18.50
21	150QJ5-275			275			7.5	18.50
22	150QJ5-286			286			9.2	22.12
23	150QJ5-297			297			9.2	22.12
24	150QJ5-308			308			9.2	22.12
25	150QJ5-330			330			9.2	22.12
26	150QJ5-352			352			11	26.28
27	150QJ5-374			374			11	26.28
28	150QJ5-385			385			11	26.28
29	150QJ5-407			407			11	26.28
30	150QJ5-429			429			13	30.67
31	150QJ5-451			451			13	30.67
32	150QJ5-473			473			13	30.67
33	150QJ5-495			495			15	34.95
34	150QJ5-517			517			15	34.95
35	150QJ5-539			539			15	34.95
36	150QJ5-550			550			15	34.95
37	150QJ10-50	50	10	50	380	380	3	7.84	143
38	150QJ10-70			70			4	10.12
39	150QJ10-100			100			5.5	13.65
40	150QJ10-128			128			7.5	18.50
41	150QJ10-150			150			7.5	18.50
42	150QJ10-200			200			11	26.28
43	150QJ10-250			250			13	30.67
44	150QJ10-300			300			15	34.95
45	150QJ10-310			310			18.5	42.58
46	150QJ10-330			330			18.5	42.58
47	150QJ10-350			350			18.5	42.58
48	150QJ10-360			360			18.5	42.58
49	150QJ10-380			380			22	50.33
50	150QJ10-400			400			22	50.33
51	150QJ10-420			420			22	50.33
52	150QJ10-450			450			25	57.19
53	150QJ10-470			470			25	57.19
54	150QJ10-490			490			25	57.19
55	150QJ10-500			500			30	67.38
56	150QJ10-520			520			30	67.38
57	150QJ10-550			550			30	67.38
58	150QJ15-15	50	15	15	2850	380	1.5	4.60	143
59	150QJ15-23			23			2.2	6.55
60	150QJ15-30			30			3	7.84
61	150QJ15-38			38			3	7.84
62	150QJ15-45			45			4	10.12
63	150QJ15-53			53			4	10.12
64	150QJ15-60			60			5.5	13.65
65	150QJ15-68			68			5.5	13.65
66	150QJ15-75			75			7.5	18.50
67	150QJ15-83			83			7.5	18.50
68	150QJ15-90			90			7.5	18.50
69	150QJ15-98			98			7.5	18.50
70	150QJ15-105			105			9.2	22.12
71	150QJ15-113			113			9.2	22.12
72	150QJ15-120			120			9.2	22.12
73	150QJ15-128			128			11	26.28
74	150QJ15-135			135			11	26.28
75	150QJ15-143			143			11	26.28
76	150QJ15-165			165			13	30.67
77	150QJ15-180			180			15	34.95
78	150QJ15-195			195			15	34.95
79	150QJ15-203			203			18.5	42.58
80	150QJ15-210			210			18.5	42.58
81	150QJ15-225			225			18.5	42.58
82	150QJ15-240			240			18.5	42.58
83	150QJ15-255			255			22	50.33
84	150QJ15-270			270			22	50.33
85	150QJ15-285			285			22	50.33
86	150QJ15-300			300			25	57.19
87	150QJ15-315			315			25	57.19
88	150QJ15-330			330			25	57.19
89	150QJ15-345			345			30	67.38
90	150QJ15-360			360			30	67.38
91	150QJ15-375			375			30	67.38
92	150QJ20-39	50	20	39	2850	380	4	10.12	143
93	150QJ20-52			52			5.5	13.65
94	150QJ20-65			65			7.5	18.50
95	150QJ20-72			72			7.5	18.50
96	150QJ20-78			78			7.5	18.50
97	150QJ20-85			85			9.2	22.12
98	150QJ20-98			98			9.2	22.12
99	150QJ20-104			104			11	26.28
100	150QJ20-111			111			13	30.67
101	150QJ20-137			137			13	30.67
102	150QJ20-143			143			15	34.95
103	150QJ20-156			156			15	34.95
104	150QJ20-176			176			18.5	42.58
105	150QJ20-182			182			18.5	42.58
106	150QJ20-200			200			22	50.33
107	150QJ20-220			220			22	50.33
108	150QJ20-240			240			25	57.19
109	150QJ20-260			260			30	67.38
110	150QJ20-280			280			30	67.38
111	150QJ20-300			300			30	67.38
112	150QJ32-24	65	32	24	2850	380	4	10.12	143
113	150QJ32-36			36			5.5	13.65
114	150QJ32-42			42			7.5	18.50
115	150QJ32-54			54			9.2	22.12
116	150QJ32-66			66			11	26.28
117	150QJ32-72			72			13	30.67
118	150QJ32-84			84			13	30.67
119	150QJ32-96			96			15	34.95
120	150QJ32-108			108			18.5	42.58
121	150QJ32-114			114			18.5	42.58
122	150QJ40-24	80	40	24	2850	380	5.5	13.65	143
123	150QJ40-36			36			7.5	18.50
124	150QJ40-42			42			9.2	22.12
125	150QJ40-54			54			11	26.28
126	150QJ40-66			66			13	30.67
127	150QJ40-72			72			15	34.95
128	150QJ40-84			84			15	34.95
129	150QJ40-90			90			18.5	42.58
130	150QJ40-96			96			18.5	42.58
131	150QJ50-30	80	50	30	2850	380	5.5	13.65	143
132	150QJ50-36			36			7.5	18.50
133	150QJ50-42			42			9.2	22.12
134	150QJ50-50			50			11	26.28
135	150QJ50-56			56			13	30.67
136	150QJ50-63			63			15	34.95
137	150QJ50-70			70			18.5	42.58
138	150QJ50-78			78			18.5	42.58
