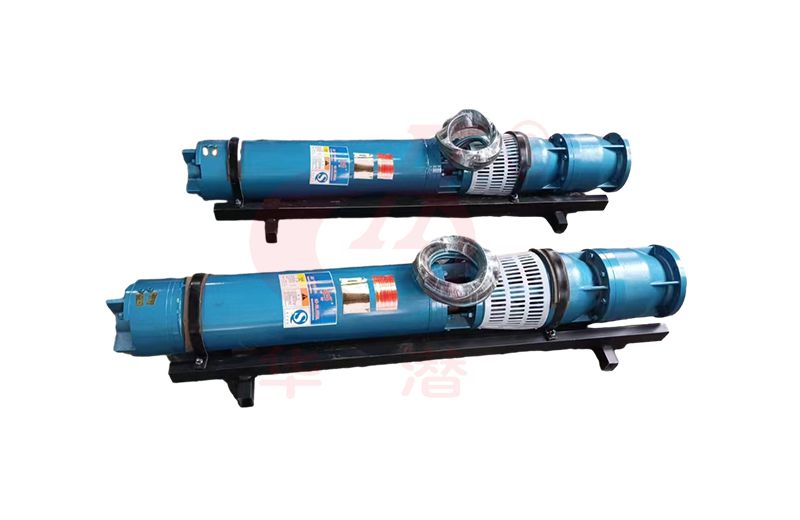

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Inquire Now Next Product

Product Description

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Type:

1. The pump is vertical, with a diversion shell or impeller, routine or mixed flow impeller type.

2. The pump and the submersible motor are directly connected or coaxial.

3. From the drive end, the shaft is generally rotated clockwise.

Model: submersible pump for well

Instance:

Submersible pump 150 series

Model: submersible motor:

Instance:

Submersible pump 150 series

Basic Parameters:

No.	Specifications and models	Outlet diameter mm	Rated flow m³/h	Rated lift m	Rotating speed r/min	Rated voltage V	Rated power kW	Rated current A
1	300QJW140-63	125	140	63	2900	380	37	78.28
2	300QJW140-84			84			55	114.32
3	300QJW140-105			105			63	130.95
4	300QJW140-126			126			75	154.99
5	300QJW140-147			147			90	185.98
6	300QJW140-168			168			100	203.07
7	300QJW140-189			189			110	223.38
8	300QJW140-210			210			125	252.39
9	300QJW140-231			231			140	282.68
10	300QJW140-252			252			160	321.22
11	300QJW140-294			294			185	367.15
12	300QJW140-336			336			220	436.61
13	300QJW160-40	150	160	40	2900	380	30	63.84
14	300QJW160-60			60			45	95.20
15	300QJW160-80			80			63	130.95
16	300QJW160-100			100			75	154.99
17	300QJW160-120			120			90	185.98
18	300QJW160-140			140			110	223.38
19	300QJW160-160			160			125	252.39
20	300QJW160-180			180			125	252.39
21	300QJW160-200			200			140	282.68
22	300QJW160-220			220			160	321.22
23	300QJW160-240			240			185	367.15
24	300QJW160-260			260			185	367.15
25	300QJW200-20	150	200	20	2900	380	18.5	41.05
26	300QJW200-40			40			37	78.28
27	300QJW200-60			60			55	114.32
28	300QJW200-80			80			75	154.99
29	300QJW200-100			100			90	185.98
30	300QJW200-120			120			100	203.07
31	300QJW200-140			140			125	252.39
32	300QJW200-160			160			140	282.68
33	300QJW200-180			180			160	321.22
34	300QJW200-200			200			185	367.15
35	300QJW200-240			240			220	436.61
36	300QJW230-20	150	230	20	2900	380	22	48.23
37	300QJW230-40			40			45	95.20
38	300QJW230-60			60			63	130.95
39	300QJW230-80			80			75	154.99
40	300QJW230-100			100			100	203.07
41	300QJW230-120			120			125	252.39
42	300QJW230-140			140			140	282.68
43	300QJW230-160			160			160	321.22
44	300QJW230-180			180			185	367.15
45	300QJW240-44	150	240	44	2900	380	45	95.20
46	300QJW240-66			66			75	154.99
47	300QJW240-88			88			90	185.98
48	300QJW240-110			110			110	223.38
49	300QJW240-132			132			140	282.68
50	300QJW240-154			154			160	321.22
51	300QJW320-30	200	320	30	2900	380	45	95.20
52	300QJW320-60			60			90	185.98
53	300QJW320-90			90			125	252.39
54	300QJW320-120			120			160	321.22
55	300QJW320-150			150			220	436.61
56	300QJW320-180			180			250	496.14
57	300QJW350-30	200	350	30	2900	380	55	114.32
58	300QJW350-60			60			100	203.07
59	300QJW350-90			90			160	321.22
60	300QJW350-120			120			220	436.61
61	300QJW350-150			150			250	496.14
62	300QJW350-180			180			315	621.61
63	300QJW350-210			210			355	700.54
