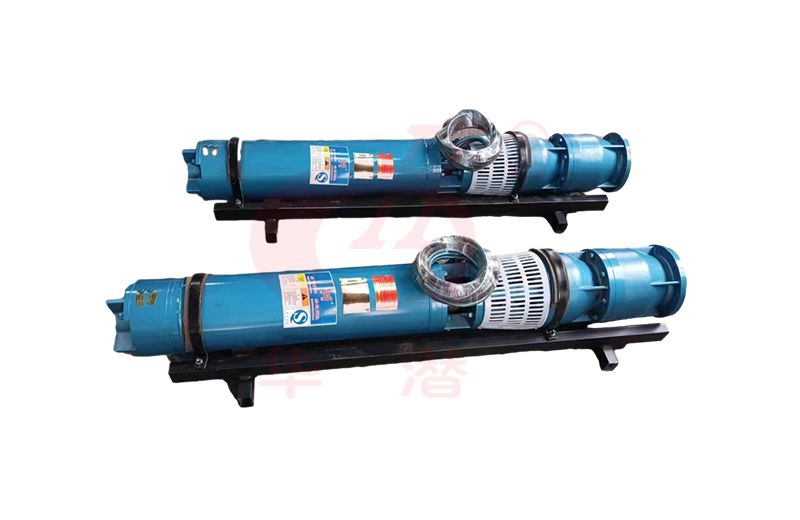

Horizontal submersible pump 200 series

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Inquire Now

Product Description

Pump device: a device composed of pump head, motor, water head, water pipe, waterproof cable, pump seat, control cabinet and related components.

Type:

1. The pump is vertical, with a diversion shell or impeller, routine or mixed flow impeller type.

2. The pump and the submersible motor are directly connected or coaxial.

3. From the drive end, the shaft is generally rotated clockwise.

Model: submersible pump for well

Instance:

Submersible pump 150 series

Model: submersible motor:

Instance:

Submersible pump 150 series

Basic Parameters:

No.	Specifications and models	Outlet diameter mm	Rated flow m³/h	Rated lift m	Rotating speed r/min	Rated voltage V	Rated power kW	Rated current A
1	200QJW20-40	50	20	40	2850	380	4	9.99
2	200QJW20-54			54			5.5	13.48
3	200QJW20-81			81			7.5	18.04
4	200QJW20-105			105			11	25.64
5	200QJW20-120			120			13	30.11
6	200QJW20-135			135			15	34.31
7	200QJW20-150			150			18.5	41.30
8	200QJW20-180			180			18.5	41.30
9	200QJW20-210			210			22	48.52
10	200QJW20-230			230			25	54.48
11	200QJW20-260			260			30	65.38
12	200QJW20-290			290			37	78.74
13	200QJW25-28	50	25	28	2850	380	4	9.99
14	200QJW25-42			42			5.5	13.48
15	200QJW25-56			56			7.5	18.04
16	200QJW25-70			70			9.2	21.84
17	200QJW25-98			98			11	25.64
18	200QJW25-112			112			13	30.11
19	200QJW25-126			126			15	34.31
20	200QJW25-154			154			18.5	41.30
21	200QJW25-182			182			22	48.52
22	200QJW25-210			210			25	54.48
23	200QJW25-252			252			30	65.38
24	200QJW25-308			308			37	78.74
25	200QJW32-26	65	32	26	2850	380	4	9.99
26	200QJW32-39			39			5.5	13.48
27	200QJW32-52			52			7.5	18.04
28	200QJW32-65			65			9.2	21.84
29	200QJW32-78			78			11	25.64
30	200QJW32-91			91			13	30.11
31	200QJW32-104			104			15	34.31
32	200QJW32-117			117			18.5	41.30
33	200QJW32-130			130			22	48.52
34	200QJW32-143			143			22	48.52
35	200QJW32-169			169			25	54.48
36	200QJW32-195			195			30	65.38
37	200QJW32-247			247			37	78.74
38	200QJW32-260			260			45	95.76
39	200QJW32-273			273			45	95.76
40	200QJW32-286			286			45	95.76
41	200QJW40-26	80	40	26	2850	380	5.5	13.48
42	200QJW40-39			39			7.5	18.04
43	200QJW40-52			52			9.2	21.84
44	200QJW40-65			65			13	30.11
45	200QJW40-78			78			15	34.31
46	200QJW40-91			91			18.5	41.30
47	200QJW40-104			104			18.5	41.30
48	200QJW40-117			117			22	48.52
49	200QJW40-130			130			25	54.48
50	200QJW40-143			143			25	54.48
51	200QJW40-169			169			30	65.38
52	200QJW40-208			208			37	78.74
53	200QJW40-221			221			45	95.76
54	200QJW40-234			234			45	95.76
55	200QJW40-247			247			45	95.76
56	200QJW50-26	80	50	26	2850	380	5.5	13.48
57	200QJW50-39			39			7.5	18.04
58	200QJW50-52			52			11	25.64
59	200QJW50-65			65			15	34.31
60	200QJW50-78			78			18.5	41.30
61	200QJW50-91			91			22	48.52
62	200QJW50-104			104			22	48.52
63	200QJW50-117			117			25	54.48
64	200QJW50-130			130			30	65.38
65	200QJW50-143			143			37	78.74
66	200QJW50-156			156			37	78.74
67	200QJW50-169			169			37	78.74
68	200QJW50-182			182			45	95.76
69	200QJW50-195			195			45	95.76
70	200QJW50-208			208			55	116.36
71	200QJW50-221			221			55	116.36
72	200QJW63-24	80	63	24	2850	380	7.5	18.04
73	200QJW63-36			36			11	25.64
74	200QJW63-48			48			15	34.31
75	200QJW63-60			60			18.5	41.30
76	200QJW63-72			72			22	48.52
77	200QJW63-84			84			25	54.48
78	200QJW63-96			96			30	65.38
79	200QJW63-108			108			30	65.38
80	200QJW63-120			120			37	78.74
81	200QJW63-144			144			45	95.76
82	200QJW63-156			156			45	95.76
83	200QJW63-168			168			55	116.36
84	200QJW80-22	100	80	22	2850	380	7.5	18.04
85	200QJW80-33			33			11	25.64
86	200QJW80-44			44			15	34.31
87	200QJW80-55			55			18.5	41.30
88	200QJW80-66			66			22	48.52
89	200QJW80-77			77			25	54.48
90	200QJW80-88			88			30	65.38
91	200QJW80-99			99			37	78.74
92	200QJW80-121			121			45	95.76
93	200QJW80-132			132			45	95.76
94	200QJW80-143			143			55	116.36
95	200QJW100-18	100	100	18	2850	380	7.5	18.04
96	200QJW100-36			36			15	34.31
97	200QJW100-45			45			22	48.52
98	200QJW100-54			54			25	54.48
99	200QJW100-63			63			30	65.38
100	200QJW100-72			72			37	78.74
101	200QJW100-90			90			45	95.76
102	200QJW100-108			108			55	116.36
